Cooker hob - Quadra Modular Induction Plate
Description
Details
Accessories
Pairings
Alternatives
Description
The Modular Induction Plate requires a simple configuration, composed of Connection box and Touch Control Modular (see "Recommended pairings" at the bottom of the page).
Details
Cooker hob - Quadra Modular Induction Plate
Code product
B7365300
Coloring
Black
Edge/Installation Type
Bevelled Edge - for flush-mount or over-mount installation
Material
Ceramic glass
Supply
Single-phase: 230 V; 1P + N; Two-phase 400 V; 2P + N; 50.60 Hz

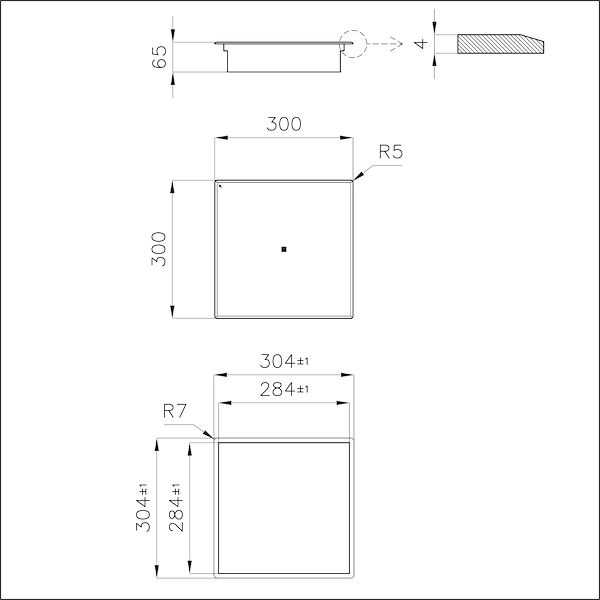

Dimensions
Ø 300 mm
Full description
Induction plate 300x300 mm - black - for Quadra Modular System
Heating element
single burner
Total power
2.300 (3.000)* W
Power settings
9 power settings per zone + * Powerboost
Safety
Safety equipment
Type
Induction Hob
Type of commands
Touch Control
Notes:
* Powerboost
Pairings
Cooker hob Touch Control Modular Quadra
Cooker hob Touch Control Modular QuadraB7367 020
Cooker hob Touch Control Modular Quadra
Cooker hob Touch Control Modular QuadraB7367 040
Cooker hob Touch Control Modular Quadra
Cooker hob Touch Control Modular QuadraB7367 030
Modular Induction - Connection Box
Modular Induction - Connection BoxB7369 040
Modular Induction - Connection Box
Modular Induction - Connection BoxB7369 030
Modular Induction - Connection Box
Modular Induction - Connection BoxB7369 020
Alternatives
Cooker hob - Quadra Modular Induction Plate
Cooker hob - Quadra Modular Induction PlateB7366 350
Cooker hob Modular Quadra
Cooker hob Modular QuadraB7365 040
Cooker hob Touch Control Modular Induction
Cooker hob Touch Control Modular InductionB7368 030
Cooker hob Touch Control Modular Induction
Cooker hob Touch Control Modular InductionB7368 045
Cooker hob - Modular Induction Plate
Cooker hob - Modular Induction PlateB7362 305
Cooker hob Modular Induction
Cooker hob Modular InductionB7366 035
Cooker hob Modular Induction
Cooker hob Modular InductionB7366 045
Cooker hob Modular Induction
Cooker hob Modular InductionB7366 040
Cooker hob - Modular Induction Plate
Cooker hob - Modular Induction PlateB7362 300
Cooker hob Touch Control Modular Induction
Cooker hob Touch Control Modular InductionB7368 035
Cooker hob Touch Control Modular Quadra
Cooker hob Touch Control Modular QuadraB7367 030
Cooker hob - Quadra Modular Induction Plate
Cooker hob - Quadra Modular Induction PlateB7364 270
Modular Induction

Cooker hob - Quadra Modular Induction Plate

B7365 300
